| Included |
Transcend Micro 510 Auto CPAP, Transcend Micro PowerAway Battery, Transcend Micro Essentials Pack for the Micro 510, Transcend Micro SleepPak Travel Bag, Transcend Micro hard shell travel case, Transcend Micro 510 TransFlex 6-Foot Hose, Micro 510 air filter, Transcend WhisperSoft Micro Muffler, AC Power Adapter, Transcend Micro AirMist HME, Transcend Micro 510 User Guide |
| Essentials Pack Contents |

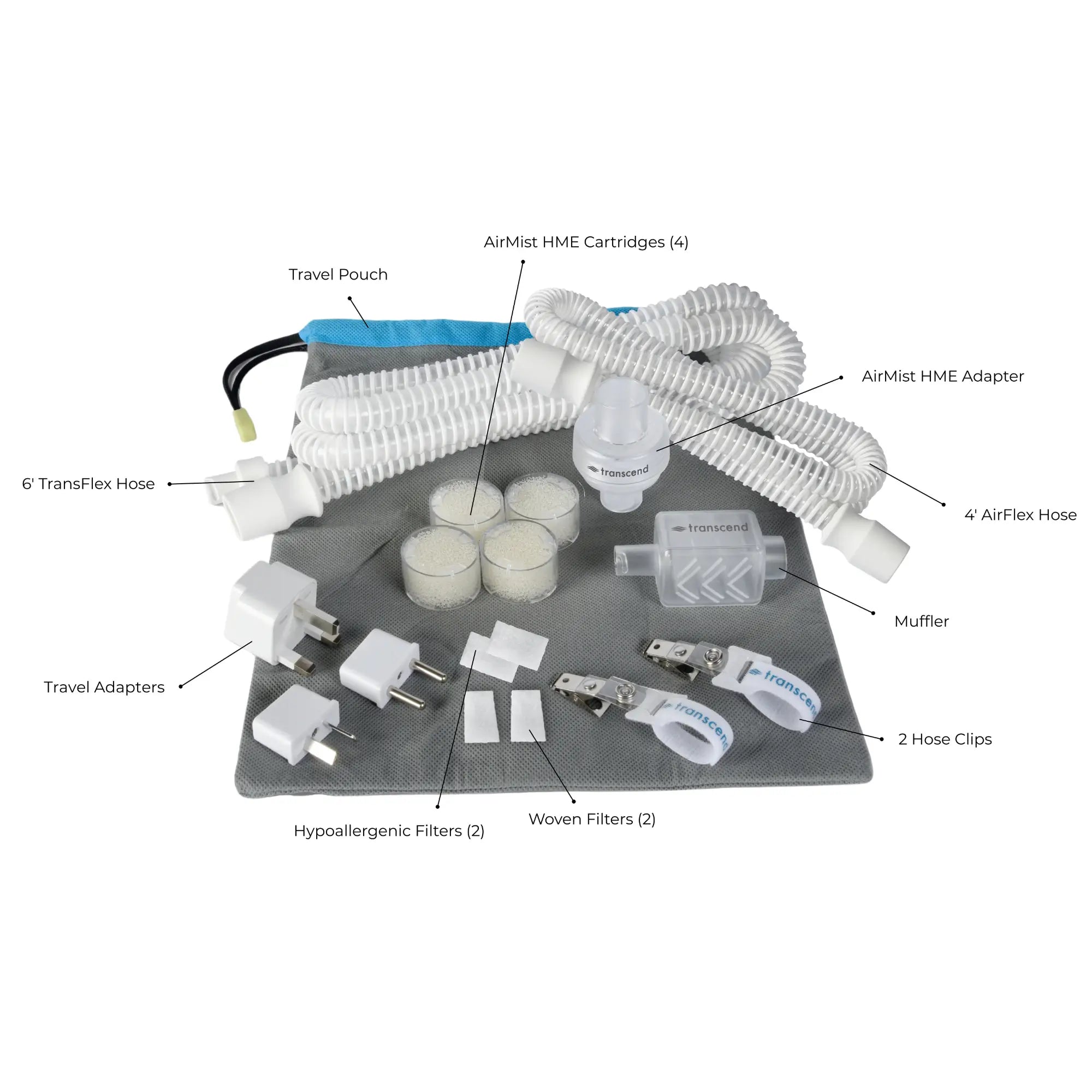

Drawstring bag, TransFlex 6 ft hose, AirFlex 4 ft hose, WhisperSoft Micro Muffler, AirMist HME adapter, 4 AirMist HME cartridges, 2 Micro 510 woven filters, 2 Micro 510 hypoallergenic filters, international plug adapters, 2 hose clips |
| Manufacturer Bundle |

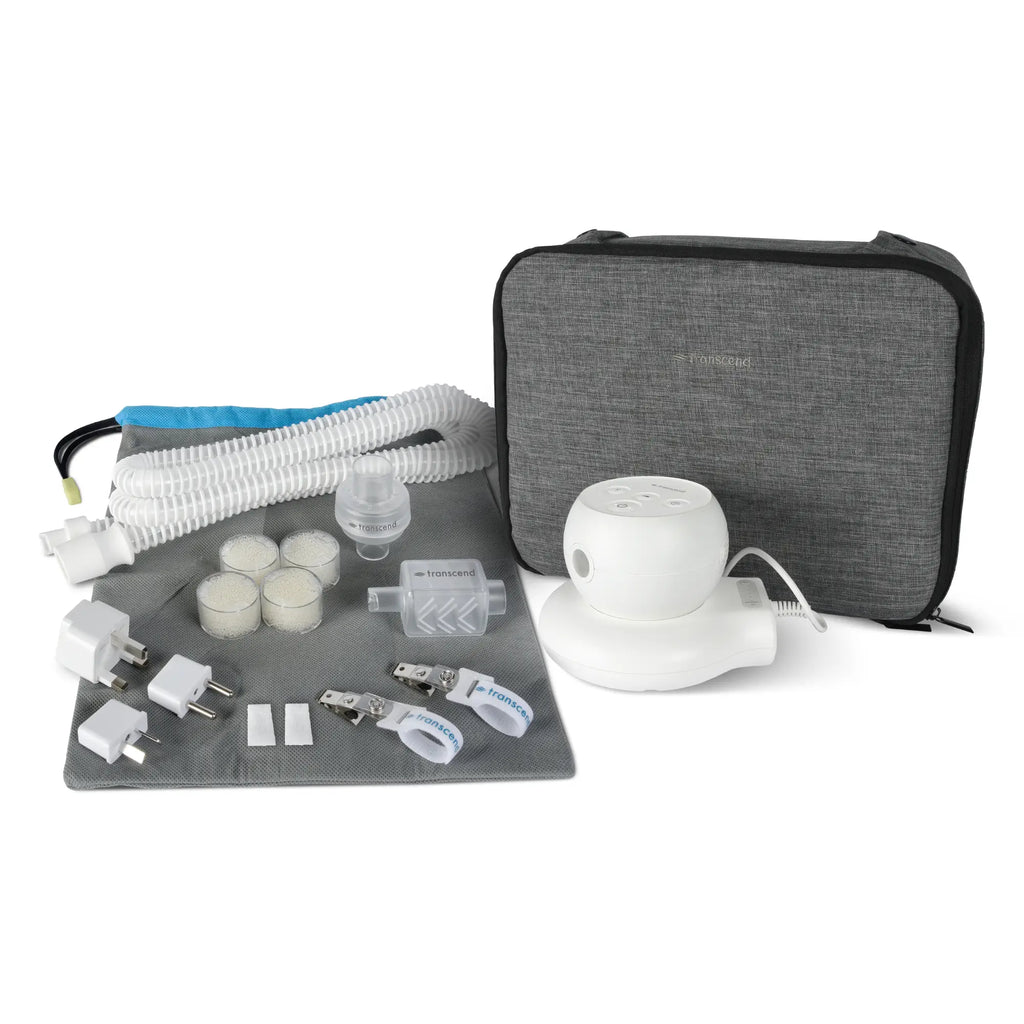

Transcend Micro 510 Power Bundle (505056) |
| Machine |
Transcend Micro 510 Auto CPAP (SKU 507000 to 507003) |
| Machine Colors |
Midnight Blue, Petal Pink, Graphite Gray, Birch White |
| Therapy Modes |
CPAP and Auto-CPAP |
| Indication |
Obstructive sleep apnea in adults over 66 lb (30 kg) |
| Pressure Range |
4 to 20 cm H2O |
| Ramp |
GentleRise, 0 to 45 min |
| Exhalation Relief |
AirRelief: Off, 1, 2 or 3 |
| Auto Start and Stop |
Yes (SleepStart) |
| Drying Mode |
30 min low-speed drying cycle |
| Max Operating Altitude |
8,000 ft (automatic) |
| Sound Level |
27 dBA in typical use |
| Machine Weight |
Under 0.5 lb |
| Machine Dimensions |
3.6 x 3.6 x 2.4 in (9.1 x 9.1 x 6.1 cm) |
| Operating Temperature |
41 to 95°F (5 to 35°C) |
| Battery |

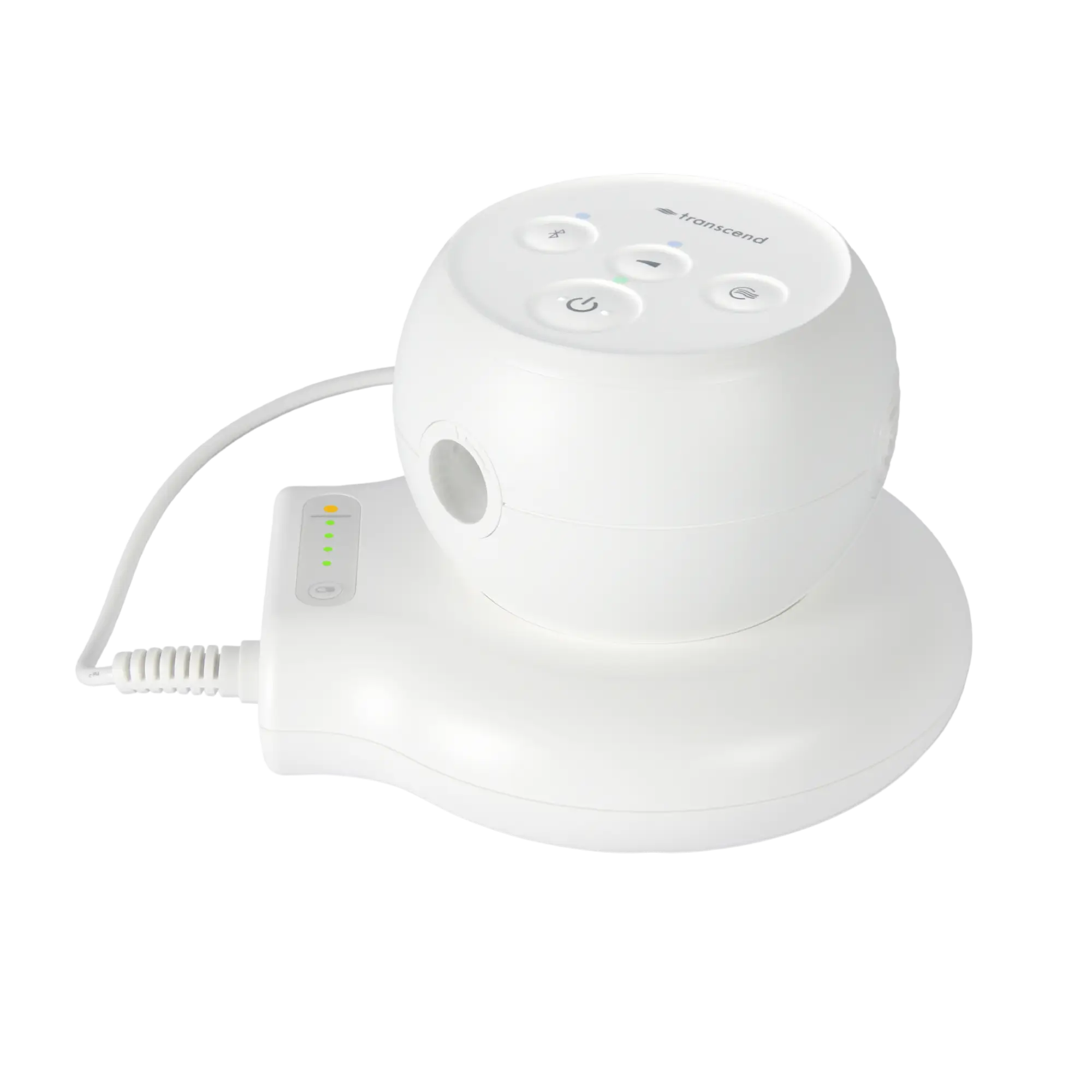

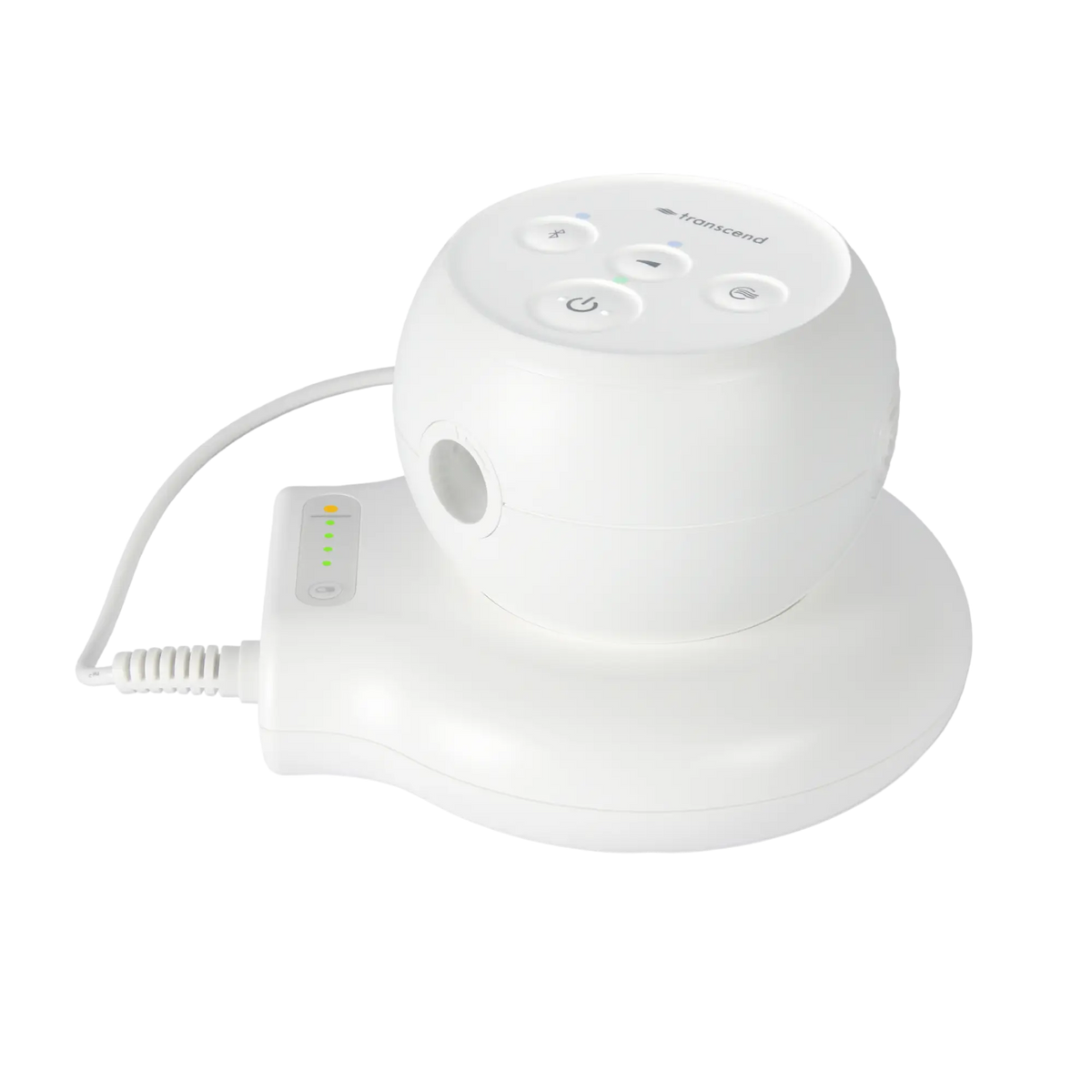

Transcend Micro PowerAway Battery (505001), rechargeable lithium-ion |
| Battery Runtime |
Up to 17.5 hours per charge in most cases; varies with pressure, mask, leaks, altitude and accessories |
| Battery Charge Time |
Up to 4 hours with the Micro 510 AC adapter |
| Battery Capacity |
71 Wh |
| Battery Charge Cycles |
Over 1,000 full charge and discharge cycles |
| Battery Size and Weight |
About 4.8 x 5.2 x 1.3 in; about 1 lb |
| Backup Power |
Battery connected between the AC adapter and the Micro 510 charges during therapy and keeps therapy running in a power outage |
| Air Travel |
FAA compliant for in-flight use, including the PowerAway battery cell (RTCA/DO-160G, Section 21, Category M) |
| Power Supply |
40W AC adapter, input 100 to 240 VAC, 50/60 Hz; output 19 VDC, 2.1 A |
| Humidification |
Waterless AirMist HME; cartridge is disposable, replace after 3 to 7 days of use |
| Connectivity |
Bluetooth with the MySleepDash app (iOS and Android); USB-C data port |
| Air Filter |
Micro 510 filters only; inspect weekly, replace every 2 weeks |
| Hose and Muffler |
TransFlex 6 ft hose and WhisperSoft Micro Muffler; clean weekly, replace every 3 months |
| Travel Storage |

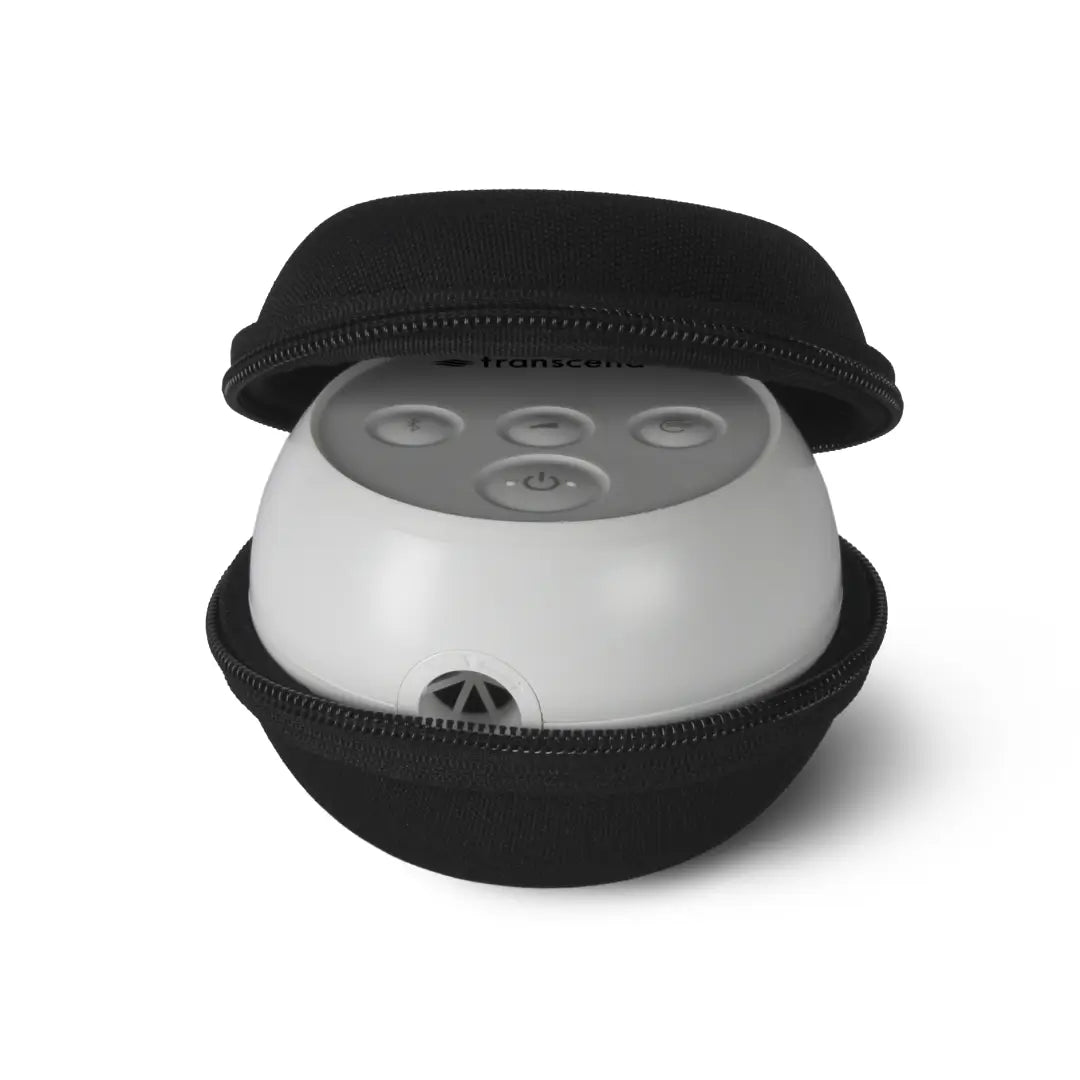

SleepPak travel bag, hard shell travel case, drawstring bag |
| Mask |
Not included; works with standard 22 mm CPAP masks |
| Made In |
USA, of US and imported parts (device only) |
| Prescription |
Required |
| Warranty |
Machine 3 years; PowerAway battery 1 year; accessories 90 days |
