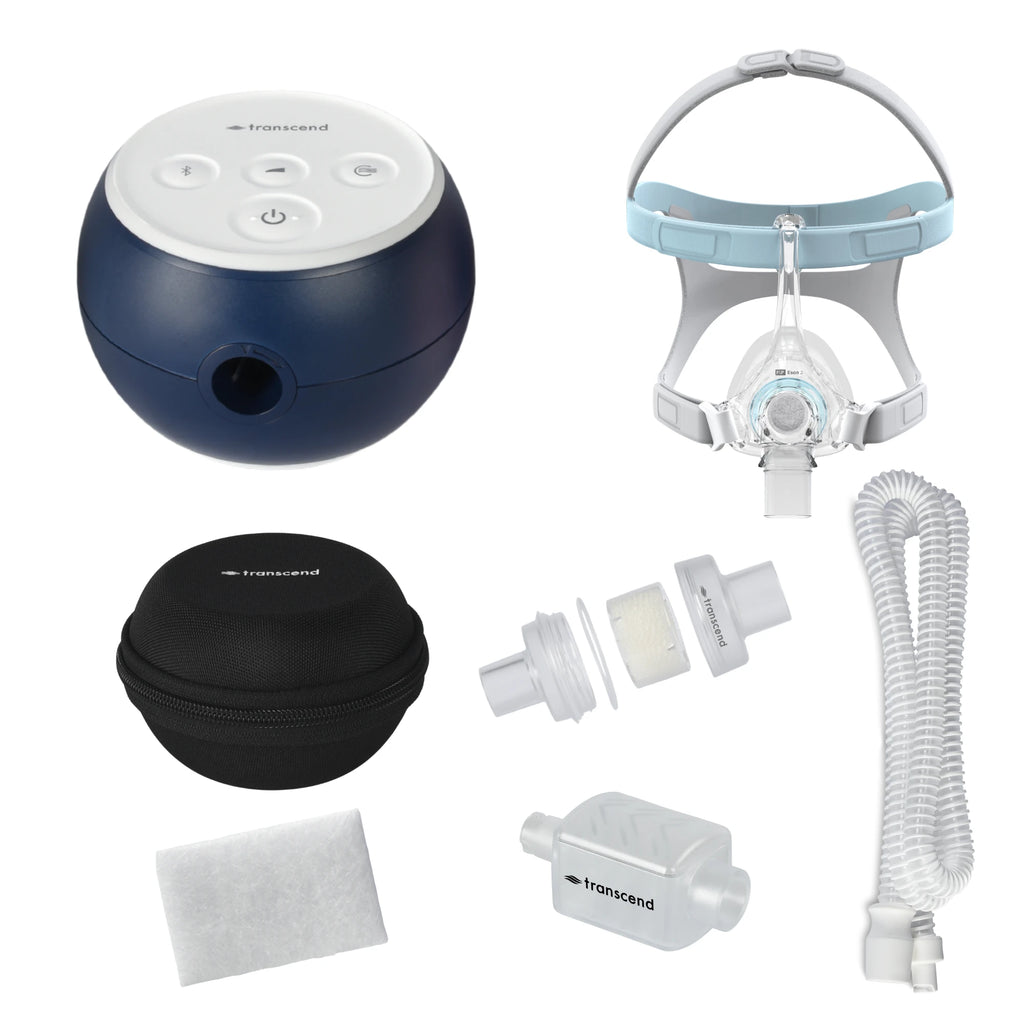

Transcend Micro CPAP Machine 510 with Eson 2 Nasal Mask Bundle

The Eson 2 covers only the nose and requires consistent nasal breathing throughout the night to maintain the seal. Sleep apnea patients who breathe through the mouth during sleep will need a full face mask or a chin strap. The mask is compatible with CPAP, APAP, and BiLevel PAP devices with standard 22mm connections.

The RollFit nasal cushion rolls back and forth on the nasal bridge to automatically maintain contact as head position changes during sleep. This reduces pressure buildup at the nasal bridge and lowers the likelihood of leaks caused by movement, without requiring the headgear to be tightened excessively to compensate.

The Eson 2 headgear combines stretch and non-stretch fabric panels. Stretch zones allow side-to-side and vertical head movement, while non-stretch sections maintain mask position. The headgear can be pulled directly over the head for fitting and self-locates at the rear of the skull. Two sizes are available: small and medium-large.

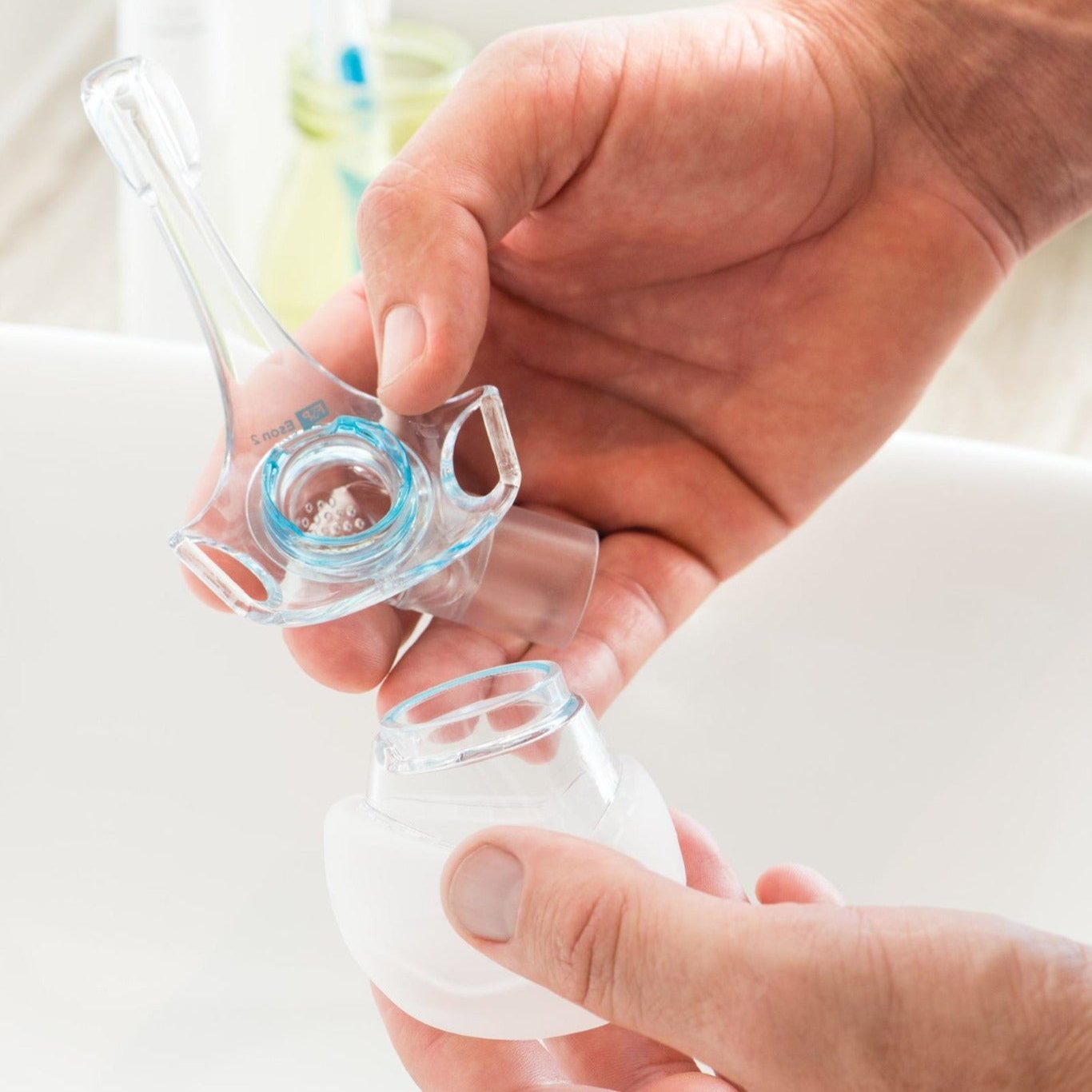

The Easy Clip frame fits all three cushion sizes, so replacing the seal does not require buying a new frame. The frame has a narrower profile than its predecessor, providing a clearer line of sight during use. The Easy Clip attachment allows the cushion to be removed and reattached quickly after washing without tools.

The diffuser reduces audible airflow noise and redirects exhaled air away from the bed partner during sleep apnea therapy. Unlike single-use components, the Eson 2 diffuser is washable and designed for repeated use. It is available as a separate replacement part (400ESN261) when it needs to be replaced.

Blue markers on key components identify correct orientation for assembly, disassembly, and reassembly after cleaning. This is particularly useful for new sleep apnea patients handling a multi-part mask for the first time, reducing errors when putting the mask back together after the weekly cleaning cycle.

The Eson 2 seal, headgear, clips, elbow, diffuser, and swivel are all available individually. The seal is the component that typically needs the most frequent replacement. The frame fits all three seal sizes, so the ongoing replacement cost covers only the seal under normal use conditions.

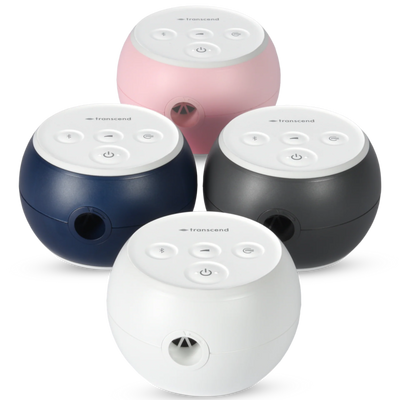

The Transcend Micro 510 weighs 0.48 lbs and measures 3.6 x 3.6 x 2.4 inches. Pressure range covers 4 to 20 cmH2O in both CPAP and Auto-CPAP modes. The machine includes GentleRise ramp mode, AirRelief exhalation comfort, auto start and stop, auto altitude adjustment up to 8,000 ft, and compliance and advanced therapy data recording.

In Auto-CPAP mode, the Transcend Micro 510 continuously adjusts delivery pressure based on real-time breathing data throughout the night. For nasal mask users, pressure requirements can shift depending on sleep position and nasal airflow resistance. Auto mode responds to these changes without requiring manual adjustment between sessions.

The AirMist HME attaches between the hose and the Eson 2 elbow, returning exhaled moisture on each inhale without requiring a water chamber or distilled water. Each cartridge lasts 5 to 7 nights. Nasal mask users are particularly prone to nasal dryness during CPAP therapy, making the HME a relevant addition for comfort.

The Transcend Micro 510 operates at 27 dBA under typical use conditions. The WhisperSoft Muffler reduces machine exhaust noise at the air outlet. The Eson 2 washable diffuser handles exhaled air noise at the mask side. Both components address noise from separate points in the breathing circuit.

AirRelief reduces delivery pressure slightly on each exhale, lowering resistance during exhalation. Four settings are available: OFF, 1, 2, and 3. For nasal mask users new to sleep apnea therapy, where exhaling against continuous airflow through the nose can feel uncomfortable initially, settings 2 or 3 are typically recommended during the adjustment period.

GentleRise starts therapy at a pressure lower than the prescribed setting and gradually increases to full therapeutic pressure over up to 45 minutes. For new CPAP users starting with a nasal mask, this reduces the initial sensation of high airflow pressure while falling asleep, which is a common reason patients discontinue therapy in the first weeks.

The machine connects via Bluetooth to the MySleepDash app on iOS and Android. Nightly therapy hours, pressure data, and leak summaries are tracked and can be shared with a physician. For nasal mask users, leak data helps identify whether the RollFit cushion size or headgear tension needs adjustment for better seal performance.

The AC adapter supports universal voltage input (100–240 VAC) for international use. The machine has no built-in battery. The Transcend Micro PowerAway Battery is available separately and delivers up to 17.5 hours of therapy per charge, covering long-haul flights, camping, and backup use during power outages.

The Transcend Micro 510 is FAA compliant and approved for use during flights. A compliance letter is available at mytranscend.com. The machine weighs under 0.5 lbs and measures less than 4 inches wide, packing alongside the Eson 2 mask in carry-on luggage without significant space constraints. Airline policies vary by carrier.

The Transcend Micro 510 carries a 3-year manufacturer warranty from date of purchase. Accessories including hoses, mufflers, HME adapters, cases, and filters are covered for 90 days. The Eson 2 mask and its replacement components follow Fisher & Paykel's own warranty terms. Using non-Transcend parts on the machine voids the Transcend warranty.

The Transcend Micro 510 is an FDA-regulated CPAP device for obstructive sleep apnea and requires a valid prescription. Prescription renewal assistance is available for U.S. residents in eligible states.
