| Manufacturer |
ResMed |
| Included in Box |

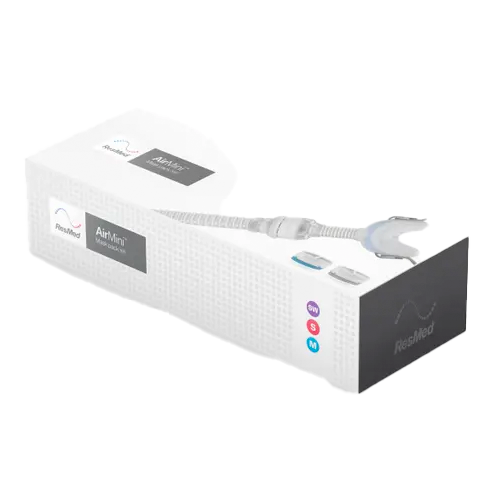

ResMed AirMini AutoSet with 20W power supply, drawstring bag, user guide and installed standard air filter; 1 spare AirMini standard filter; AirMini mask pack for the AirFit N30 (frame with mask tubing, silicone nasal cradle cushions in Small, Medium and Small-Wide, QuickFit headgear, vent module, AirMini tubing, 1 HumidX, 1 HumidX Plus) |
| Machine |
ResMed AirMini AutoSet with CPAP, AutoSet and AutoSet for Her modes |
| ResMed Part Numbers (machine and mask pack) |
AirMini AutoSet 38113; AirFit N30 for AirMini mask pack 38878 |
| Pressure Range |
4 to 20 cm H2O |
| Weight |
10.6 oz (300 g) |
| Dimensions |
5.4 in (W) x 3.3 in (D) x 2.1 in (H); 136 x 84 x 52 mm |
| Machine Sound Level |
29 dBA sound pressure, 37 dBA sound power (ISO 80601-2-70, CPAP mode) |
| Mask Sound Level |
15 dBA sound pressure at 1 m with the vent module and AirMini tubing (ISO 17510) |
| Ramp |
Off, 5 to 45 minutes, or Auto |
| Comfort Settings |
Expiratory Pressure Relief (enabled by your provider), SmartStart, SmartStop |
| Humidification |

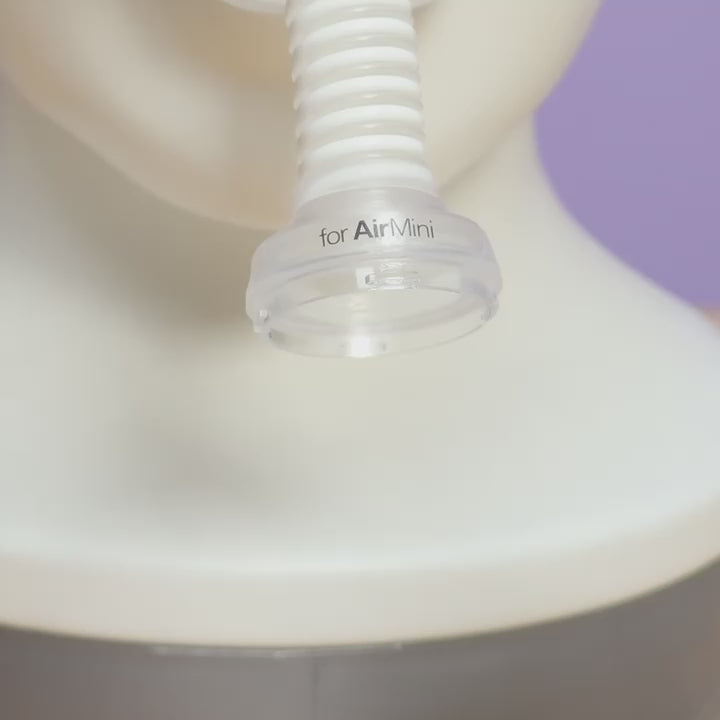

Waterless HumidX and HumidX Plus (both included); no water chamber or heater |
| Tubing |
AirMini tubing, 6 ft 2 in (1.9 m), 0.6 in (15 mm) inner diameter |
| Air Outlet |
Proprietary connector, 16 mm inner diameter; not compatible with standard EN ISO 5356-1 connectors |
| Power |
20W power supply, 100 to 240 V, 50 to 60 Hz; 115 V, 400 Hz aircraft power; 6.3 W typical consumption |
| Battery |
No internal battery; AirMini DC converter sold separately; check AirMini compatibility with the battery maker |
| Operating Altitude |
Sea level to 8,500 ft |
| Connectivity |
AirMini by ResMed app via Bluetooth (iOS and Android); app not required for therapy |
| Air Travel |
Meets FAA requirements for all phases of air travel (RTCA/DO-160, section 21, category M) |
| Mask Type |
Nasal cradle (AirFit N30 for AirMini) |
| Cushion |
Silicone; Small, Medium and Small-Wide (all included) |
| Headgear |
QuickFit split-band headgear with buckle |
| Magnets |
None |
| Mask Compatibility |
AirMini only; not compatible with supplemental oxygen |
| Mask Patient Weight |
Over 66 lb (30 kg) |
| Data Card |
No |
| Warranty |
2 years on the machine and power supply; 90 days on the mask |
| Prescription Required |
Yes, for the machine and the mask |
| FSA/HSA |
Eligible |
