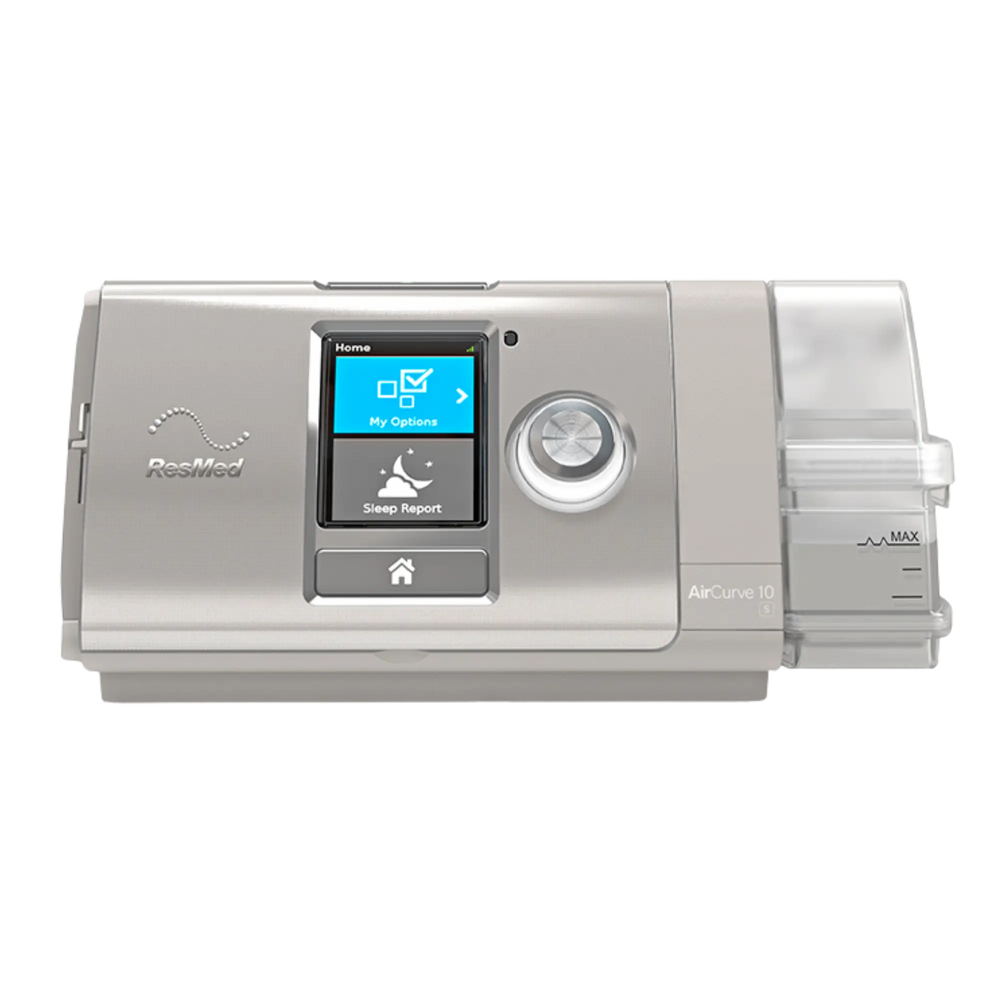

Front angled view of AirCurve 10 ASV BiPAP

Angled view of AirCurve 10 ASV BiPAP with water chamber partially removed

AirCurve 10 Bilelvel with optional heated tubing behind machine

ResMed | SKU: 37216

ResMed AirCurve 10 ASV BiPAP with HumidAir Heated Humidifier

In stock - Ships Next Business Day.

Product variants

Call for Price

30-Day Risk Free Trial

Free Shipping Over $99

2 Year Warranty

Unlimited Support

This product requires a prescription before shipment.

Upload your RX here

Overview

The AirCurve 10 ASV is a bi-level machine designed to provide individualized therapy for individuals suffering from central breathing problems such as central sleep apnea (CSA), Cheyne-Stokes respiration, and other obstructive episodes.

With one of the most powerful and established ASV algorithms ever developed, the AirCurve 10 ASV is the only servo-ventilator that properly focuses your recent minute ventilation. Every breath you take with ASVAuto, the system adapts to your ventilatory and upper airway stability needs. These quick pressure responses aid in the personalization of effective treatment.

ResMed AirCurve 10 ASV BiPAP with HumidAir Heated Humidifier

Your Total:

$2,899.00

Everything you need to know about the AirCurve 10

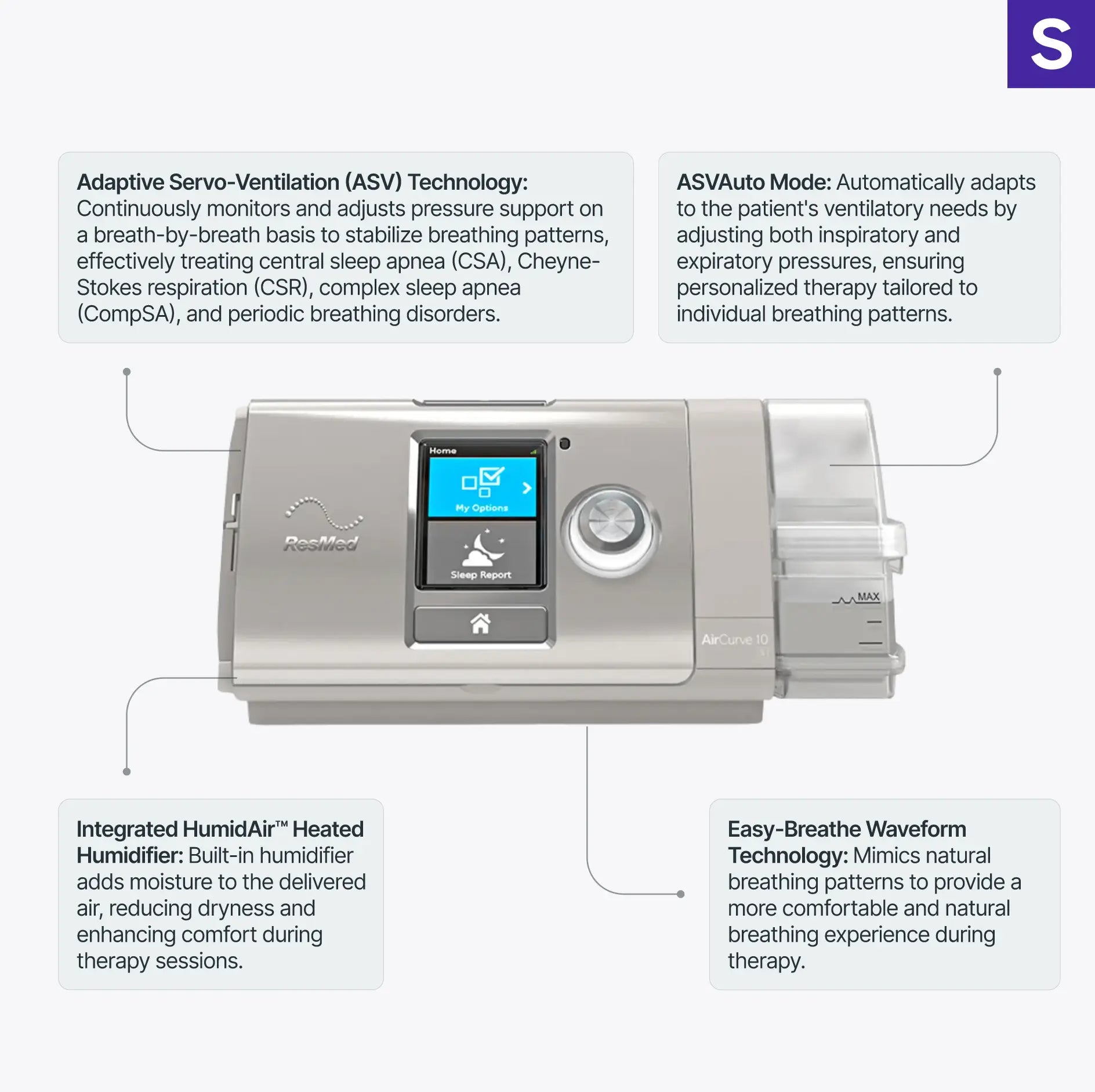

Adaptive Servo-Ventilation (ASV) Algorithm

The AirCurve 10 ASV uses an adaptive servo-ventilation algorithm that analyzes your breathing pattern on a breath-by-breath basis. It adjusts inspiratory and expiratory pressure support automatically to stabilize breathing irregularities associated with central sleep apnea (CSA), Cheyne-Stokes respiration, and mixed apneas. The algorithm learns and adapts in real-time to prevent under- or over-ventilation, providing personalized ventilation support during sleep.

ASVAuto Mode for Personalized Therapy Adjustments

ASVAuto mode combines pressure support with auto-adjusting expiratory pressure. The device continuously evaluates upper airway patency and adjusts the expiratory pressure within a set range to maintain an open airway. At the same time, it delivers varying inspiratory pressure support to stabilize ventilation and prevent central apneas. These adjustments occur automatically, without manual intervention.

Built-In HumidAir Heated Humidifier

The integrated HumidAir humidifier delivers heated humidification during therapy to prevent airway dryness and irritation. Humidity levels can be adjusted directly on the device interface, ranging from level 1 (low) to level 8 (high). The humidifier reduces dryness caused by positive airway pressure, enhancing comfort and adherence to therapy.

Minute Ventilation Targeting

The AirCurve 10 ASV targets your recent average minute ventilation to adjust the pressure needed for stable breathing. By using real-time data on your spontaneous breathing rate and effort, the device ensures that ventilation remains within a stable and appropriate range throughout the night, even if your natural breathing patterns fluctuate.

Climate Control with ClimateLineAir Heated Tubing

When used with ClimateLineAir heated tubing, Climate Control maintains constant temperature and humidity throughout the night. Sensors adjust for changes in ambient room temperature, mask leak, and flow to avoid rainout (condensation inside the tube). Climate Control ensures consistent humidity delivery without causing water buildup inside the mask or tube.

Quiet Motor and Integrated Ambient Light Sensor

The AirCurve 10 ASV features a low-noise motor that reduces sound levels during operation, limiting disturbance to bed partners. The ambient light sensor adjusts screen brightness according to the room's light level. If the room is dark, the screen dims automatically to avoid disrupting sleep.

SmartStart and AutoStop for Ease of Use

With SmartStart enabled, the device begins therapy automatically when you start breathing into the mask. AutoStop halts therapy a few seconds after the mask is removed or significant leak is detected. These features minimize manual steps and interruptions, making therapy setup and stopping seamless.

Ramp Time for Pressure Adjustment

Ramp Time allows you to start therapy at a lower pressure, increasing gradually over a set time (5 to 45 minutes) until reaching prescribed levels. This feature helps you fall asleep more comfortably by avoiding high starting pressures that may feel uncomfortable during initial relaxation.

Data Monitoring with Detailed Sleep Reports

The AirCurve 10 ASV stores comprehensive therapy data, including AHI (Apnea-Hypopnea Index), leak rate, usage hours, and mask fit. Advanced details such as tidal volume, minute ventilation, respiratory rate, and inspiratory/expiratory pressures are also recorded. Data is accessible via an SD card or through ResMed's wireless network for remote monitoring by healthcare providers.

Integrated Wireless Connectivity for Remote Monitoring

Built-in wireless communication allows therapy data to be transmitted securely to healthcare providers for ongoing monitoring and adjustments. This facilitates timely interventions, therapy optimization, and improved long-term management of complex sleep-disordered breathing.

Ergonomic SlimLine Tubing and Optional Heated Tubing

The AirCurve 10 ASV includes lightweight SlimLine tubing to reduce drag on the mask. For added comfort, ClimateLineAir heated tubing can be used to maintain warm, humidified airflow and prevent condensation. Both tubing types ensure consistent airflow delivery without kinks or resistance.

Mask Fit and Leak Management Features

During initial setup, the device includes a Mask Fit check that evaluates seal integrity and alerts if adjustments are needed. Ongoing leak detection during therapy helps maintain effective pressure delivery and accurate event detection.

Automatic Backup Rate

The machine delivers timed backup breaths when spontaneous breathing falls below a set threshold, ensuring that ventilation continues even if central apneas prevent normal effort. The backup rate adapts to your spontaneous rate to prevent unnecessary over-ventilation or discomfort.

Personalized ASV Algorithm for Complex Sleep Apnea Syndromes

The ASV algorithm is designed to treat patients with a combination of obstructive and central sleep apneas, including complex sleep apnea syndromes that emerge during CPAP therapy. The device adjusts inspiratory and expiratory pressures dynamically, based on detected airway obstruction and central apnea patterns.

Automatic Leak Compensation

The AirCurve 10 ASV detects unintentional leaks and adjusts delivered pressure to maintain target ventilation levels. This ensures therapy is effective even if minor mask leaks occur, preserving adequate airway support and reducing sleep disruptions.

myAir Digital Support Platform (Optional)

myAir provides a cloud-based platform where patients can view daily therapy usage, mask fit, and event data. Users receive personalized feedback, tips, and milestones to encourage adherence to therapy. This platform can be accessed via mobile or desktop, helping patients track progress over time.

Optional Manual Settings for Clinician Customization

Clinicians can adjust maximum and minimum pressure support levels, expiratory and inspiratory pressure ranges, and backup rates as needed. These customizable settings allow therapy to be tailored precisely for complex patient needs beyond auto-adjustments.

Machine

Tubing

Filters

Humidifier

Travel Bag

User Guide

Important Tips

Ensure proper assembly by securely connecting the humidifier, tubing, and mask before use.
Adjust ASV settings with guidance from a healthcare provider to match your breathing needs.
Use distilled water in the HumidAir Heated Humidifier to prevent mineral buildup.
Regularly clean the humidifier chamber, tubing, and mask with mild soap and warm water.
Inspect the air filter monthly and replace it as needed to maintain optimal airflow.
Use compatible tubing, such as SlimLine or ClimateLineAir, for effective humidification and comfort.
Keep the device on a stable, flat surface to ensure proper operation and airflow.
Store the device and accessories in a clean, dry place away from direct sunlight and dust.
If using supplemental oxygen, ensure you have an appropriate adapter or a mask with an oxygen port.
Monitor therapy data through myAir or your healthcare provider for adjustments and compliance tracking.

Product Specifications

Manufacturer	ResMed
Data Storage	SD Card
Tubing	Compatible with all Standard, Performance, Slim Performance, SlimLine, and ClimateLineAir Heated Tubing
Data Included	365 Days of Summary Data; Variable Amount of Detailed Data Including Usage Hours, Events (AHI) Per Hour, Mask Seal, Humidifier Functionality, Days Used, Days Used More Than 4 Hours, Average Usage, Used Hours, Average Pressure, Leak Rate, AHI, Total Apnea Index, Central Apnea Index, etc.
Includes	1) AirCurve 10 ASV BiPAP, 1) Power Supply, 1) Standard Water Chamber, 1) Standard tubing
Data Viewing	On Screen Sleep Report, MyAir Online, Desktop Software Not Available to Consumers
Battery Power	Optional External Accessory
